Automatic DC36V Solar System Sliding Gate Opener with 6000KG Capacity and IP65 Protection

起源の場所	中国深Shenzhen。
ブランド名	SINOMATIC
証明	CE/ ISO
モデル番号	BG6000

製品詳細

積載量:

6000kg

定格電力:

800W

出力電圧:

DC 36V

入力電圧:

AC220V/110V（±10％）

ゲート速度:

15m/min

保護クラス:

IP65

リモートコントロール範囲:

オープンスペース 30~90メートル

使用温度:

-30℃～+65℃

制限スイッチ:

スプリング・マグネット式

出力シャフトギアのモジュール:

モジュール4/19歯ギア

出力軸ギア径:

84mm

モーター速度:

1600RPM

支払いと送料の条件

最小注文数量

受け入れられたサンプル注文

価格

negotiable

パッケージの詳細

カートン/合板ボックス/パレット

受渡し時間

支払いを受け取ってから5〜10営業日

支払条件

T/T、ウェスタンユニオン、ビザ、マスターカード、ペイパル、ストライプ、アップルペイ、グーグルペイ、アリペイ、オンライン転送

供給の能力

1ヶ月あたりの1,000 PC

製品説明

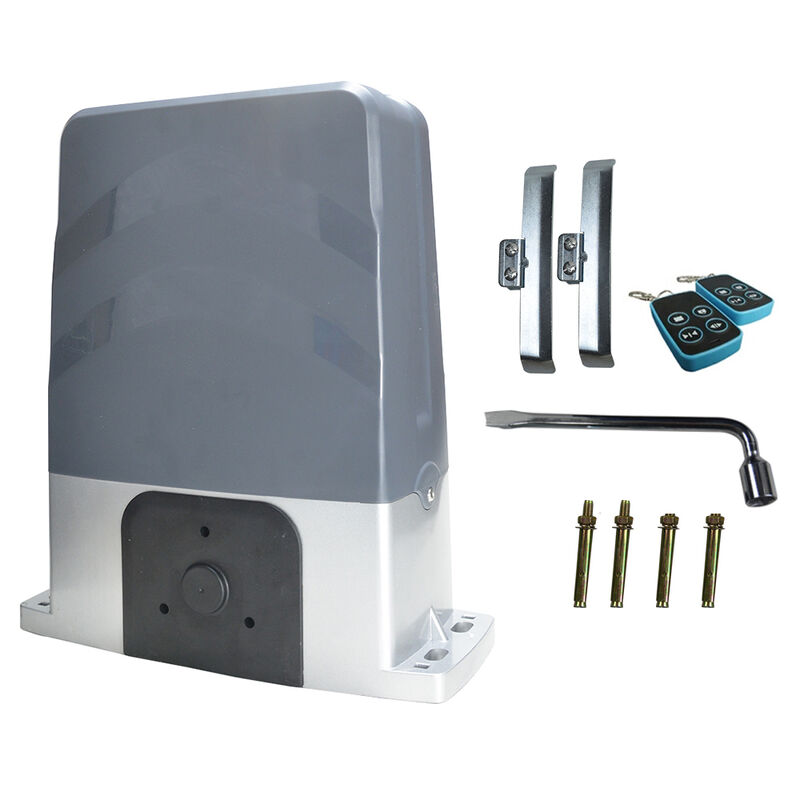

Automatic Solar System DC36V Heavy Duty Sliding Gate Opener

Heavy-duty automatic sliding gate opener designed for industrial and commercial applications requiring robust performance and reliable operation. Compatible with sliding gates up to 3500KG, 4500KG, and 6000KG capacities.

Key Features

Anti-over travel: Slow initial power-on operation prevents inertia beyond limits with power-off protection requiring reset for opposite direction movement
Co-op Mode: Enables synchronous operation of two motors with identical control boards, including synchronized infrared, loop, and auto-close functions
Motor running time protection: Prevents extended operation during stroke failure by automatically extending maximum run time based on learned stroke duration
Adjustable auto-close: Configurable waiting period from 1 to 250 seconds to meet specific operational requirements
Soft start/stop: Adjustable slow speed strength and distance via potentiometer for smooth operation
Resistance rebound: Offers stop or rebound options when encountering obstacles during operation
Bluetooth ready: On-board slot designed for optional independent Bluetooth module
Internet integration: Direct compatibility with Internet controllers/cameras without additional wiring

Technical Specifications

Model	BG3500	BG4500	BG6000
Capacity	3500kg	4500kg	6000KG
Torque	80N.m	107N.m	144N.m
Input Voltage	AC 220V/110V ± 10%	AC 220V/110V ± 10%	AC 220V/110V ± 10%
Output Voltage	DC 36V	DC 36V	DC 36V
Rated Power	450W	600W	800W
Motor Speed	1600rpm	1600rpm	1600rpm
Gate Speed	15m/min	15m/min	15m/min
Fuse	DC 40A	DC 40A	DC 40A
Remote Control Range	Open space 30~90 meters	Open space 30~90 meters	Open space 30~90 meters
Temperature	-30° C ~ +65° C	-30° C ~ +65° C	-30° C ~ +65° C
Relative Humidity	<60%	<60%	<60%
Limit Switch	Spring / Magnetic	Spring / Magnetic	Spring / Magnetic
Noise	≤60dB	≤60dB	≤60dB
Protection Class	IP 65	IP 65	IP 65
Module of Output Shaft Gear	Module 4/19-Tooth Gear	Module 4/19-Tooth Gear	Module 4/19-Tooth Gear
Output Shaft Gear Diameter	84mm	84mm	84mm

Packaging Details

Packaging Materials	Foam inside, carton outside
Package Dimensions	555040 cm
Gross Weight	30KG
Delivery Methods	By sea, air, or express (UPS, DHL, FedEx, TNT, special line express)

Safety Protection and Precautions

Follow installation instructions carefully to prevent personal injury or property damage
Retain the manual for future reference
Manufacturer is not responsible for consequences from improper use or operation beyond specified purposes
Do not install in areas with flammable/explosive materials or excessive smoke
Manufacturer is not responsible for issues caused by neglecting precision component requirements during installation
Always disconnect power and verify grounding before system maintenance
Using non-approved components voids responsibility for safety or operational issues
Do not modify system components
Installers must thoroughly explain operating procedures and emergency protocols to users
Restrict access to installation areas and eliminate potential hazards
Keep remote controls away from children
Only qualified professionals should perform repairs or adjustments
Regularly inspect installation for wear, damage, or imbalance - do not operate if repairs are needed
