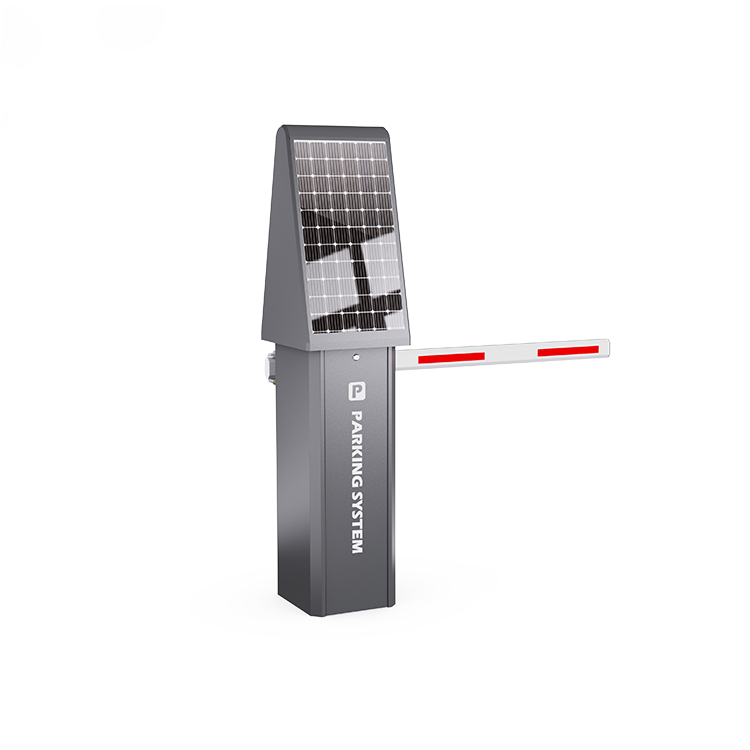

Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection

起源の場所	中国深Shenzhen。
ブランド名	SINOMATIC
証明	CE/ ISO
モデル番号	DZ-2339

製品詳細

高度の手動解除:

はい

サービス:

OEM/ODM利用可能

腕の長さ:

最大6メートル

正味重量:

70kgについて

デューティサイクル:

100％

住宅資料:

2.0 mmは鋼板を冷間圧延した

ブームの長さ:

Max.6m

作業温度:

-35℃+ 65℃

アームマテリアル:

アルミ合金/炭素繊維

応用:

オーバーサイズの交通フローエリア、トランジットソリューション、屋外、通行ソリューション、駐車ソリューション

モーターパワー:

160W

使用法:

道路交通安全

ハイライト:

IP54 Protection Automatic Barrier Gate

Solar Powered Boom Barrier Gate

High Precision Vehicle Detection Vehicle Barrier Gate

支払いと送料の条件

最小注文数量

受け入れられたサンプル注文

価格

negotiable

パッケージの詳細

カートン/合板ボックス/パレット

受渡し時間

支払いを受け取ってから5〜10営業日

支払条件

T/T、Western Union、MoneyGram

供給の能力

月額10,000個

製品説明

Solar Powered Automatic Barrier Gate with 100% Duty Cycle

High Precision Vehicle Detection and Robust Construction

All-in-One Solar Powered Barrier Gate with maximum arm length of 6m for comprehensive vehicle access control solutions.

Product Overview

Our solar-powered barrier gate combines advanced technology with environmental sustainability, delivering a reliable and cost-effective access control solution for diverse applications worldwide.

Key Features

Solar-Powered Efficiency: High-quality 24V photovoltaic solar panels fully charge the battery in 5 hours of sunlight. Operates up to 10,000 cycles without sunlight, ideal for remote locations.
High-Precision Detection: Integrated ground-sensing coils and infrared sensors provide <1 second response time for all vehicle sizes.
Durable Construction: High-strength steel with anti-rust coatings withstands extreme temperatures (-35℃ to 75℃).
Simple Installation: No complex wiring required. Compatible with asphalt, concrete, and gravel surfaces.
Advanced Safety: Includes infrared anti-pinch sensors, pressure-wave anti-impact devices, and anti-tampering alarm.

Applications

Commercial parking lots

Residential parking areas

Industrial parks

Event venues

Rural communities

Remote locations

Customization Options

Barrier arm length customizable up to 6 meters for large vehicles. Control system integrates with existing security/access control software for seamless operation.

Quality Assurance

All products undergo rigorous testing to meet international standards. Includes comprehensive after-sales service with technical support, spare parts, and maintenance.

Technical Specifications

Material	Steel
Motor	DC Brushless
Running Speed	1.2s-3s, 2.5s-6s (adjustable)
Motor No-load speed	1850r/min
Protection Class	IP54
Rated Power	160W
Input Voltage	DC 24V, AC220V OR 110V
Working temperature	-35℃~75℃
Package size	1205550 cm
Package weight	70kg
