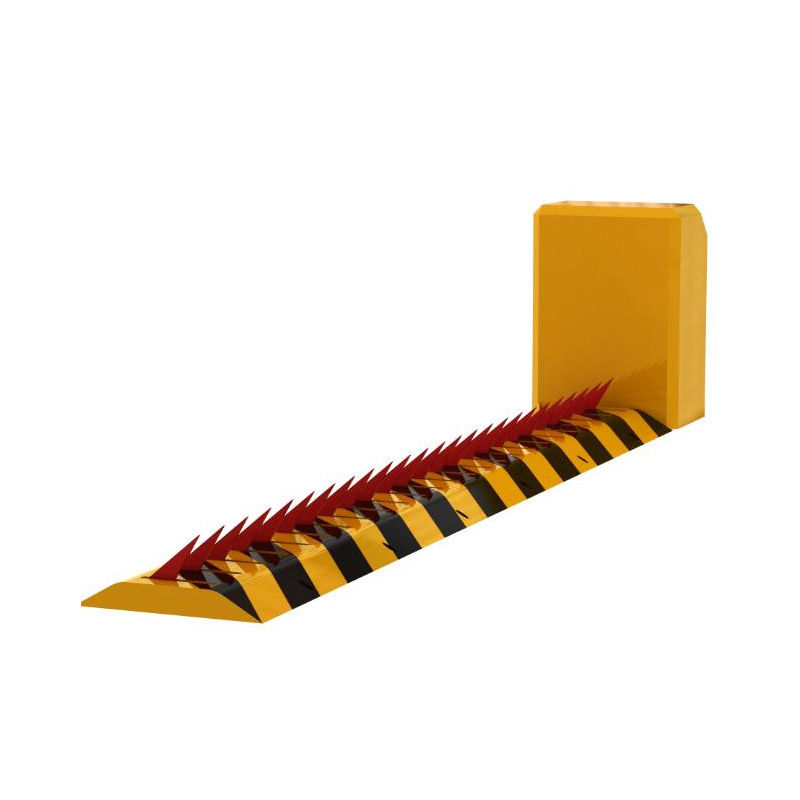

Intersection Safety Protection Anti-Rust IP68 Out Door Traffic Spike With Barb
  • Intersection Safety Protection Anti-Rust IP68 Out Door Traffic Spike With Barb
  • Intersection Safety Protection Anti-Rust IP68 Out Door Traffic Spike With Barb
  • Intersection Safety Protection Anti-Rust IP68 Out Door Traffic Spike With Barb

Intersection Safety Protection Anti-Rust IP68 Out Door Traffic Spike With Barb

Place of Origin Shenzhen, China.
ブランド名 SINOMATIC
証明 CE/ ISO
Model Number SN-TK01
製品詳細
Voltage:
Meet Customer Need
Working Temperature:
-40° C to +70° C
Min Passing Pressure:
60ton
Standard:
CE certificated
Mounted Type:
Surface/Flush
Mechanism:
Electro-mechanical
Lenght:
1m to 6m (standard)
Tyre Killer Material:
A3 steel
Dropping Time:
1s to 2s
Width:
500mm
Blocking Lenght:
1m to 6m
Remote Distance:
Max 100meter
支払いと送料の条件
Minimum Order Quantity
Sample order accepted
価格
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability
1,000pcs per month
製品説明

PRODUCT DESCRIPTION

The aboveground foundation shell is made of high-strength steel plates and equipped with a solid keel support structure.A rotating shaft is installed in the casing and is connected to the tire breaking teeth.



Each piece of solid tire teeth is welded to a reliable rotating shaft at a mutual distance of 140mm, and the lifting and lowering movements are performed through the rotating shaft.


The top cover of traffic spike is designed in accordance with DIN 1072 standards and is very strong and can carry large vehicles over 100kn to pass smoothly.


It adopts motor power mode, simple installation, easy maintenance, high safety performance and long service life.



PRODUCT DETAILS



Intersection Safety Protection Anti-Rust IP68 Out Door Traffic Spike With Barb 0

Control unit

The motor controller has a waterproof design on the outside and is driven by an electromechanical power unit internally. It is easy to lift and lower. It can be controlled by a variety of intelligent controls such as remote mobile phone APP, license plate recognition, ground sensing linkage, traffic light linkage, etc.



Tire killer barb

Made of A3 carbon steel, if an unauthorized vehicle is forcibly rammed into it, it will directly damage the vehicle tires.

Tire breaking blade height 130MM (can be customized)

Tire breaking blade thickness 10MM (can be customized).



Fixed installation port

Traffic Spike has the same fixing port and is fixed with the ground by expansion screws, making it more stable and firm



Intersection Safety Protection Anti-Rust IP68 Out Door Traffic Spike With Barb 1



PRODUCT SPECIFICATION

Material

A3 steel

Surface treatment

Painting

IP grade

IP68

Standard color

Yellow/blacke, Red/white

Body Length

3m (standard)

Body Width

520mm (standard)

Height from ground

80mm

Min. weight capacity

60T (for 10mm thickness plate)

Blade height

120mm

Blade thickness

10mm

Operation mode

Electromechanical

Working environment

-40℃~+70℃

Control mode

Short range wireless remote control/drive-by-wire

Control distance

≤50M

Up/Down speed

1a~2s

Voltage

220V ±10%



  • Application scope: intersection safety protection in key areas
  • Overall material: Made of A3 steel
  • Surface treatment: anti-rust primer + fluorocarbon topcoat
  • Protection grade IP67
  • Device length (interception width) can be customized
  • Equipment width: 500mm for single-sided thorn model, 750mm for double-sided thorn model
  • Ground height: 80mm (can be customized)
  • Electromechanical control (standard): electromechanical power unit control
  • Passing pressure: can pass 60-ton container trucks(10mm plate thickness)
  • Power supply: 220 (control voltage 24V)
  • System power (w): 180w
  • Rise time: ≤1s
  • Falling time: ≤0.8s
  • Storage environment: -30C~65C, rainproof, moistureproof and dustproof
  • Maximum weight: 60T
  • Tire breaking blade height: 120mm
  • Tire breaking blade thickness: 10mm
  • Material thickness: 10mm (optional 16, 20, 25mm)
  • Movement form: electric drive
  • Working environment:-40C~70C
  • Control method: wireless remote control or line control can be equipped with license plate recognition and red light linkage
  • Body specifications: 360mm long, 500mm wide, 700mm high
  • Equipment length, width and height: 3000*500*80mm
  • Lifting height: 130mm
  • Original chips imported from the United States (industrial grade)
  • Power switch (industrial grade)
  • Control solenoid valve (industrial grade)
  • Power supply industrial grade (-40C~85C)
  • Remote control range: within 50m
