PRODUCT DESCRIPTION

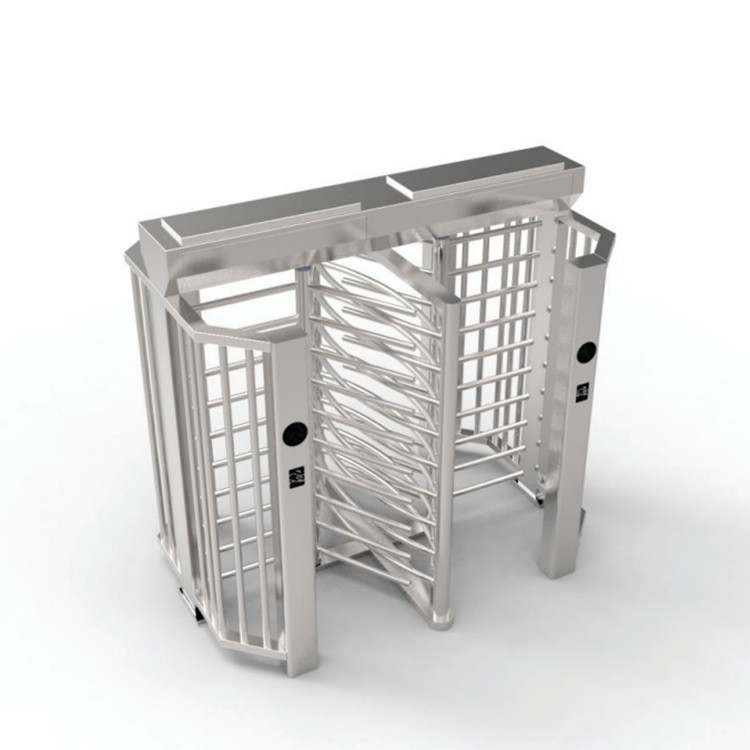

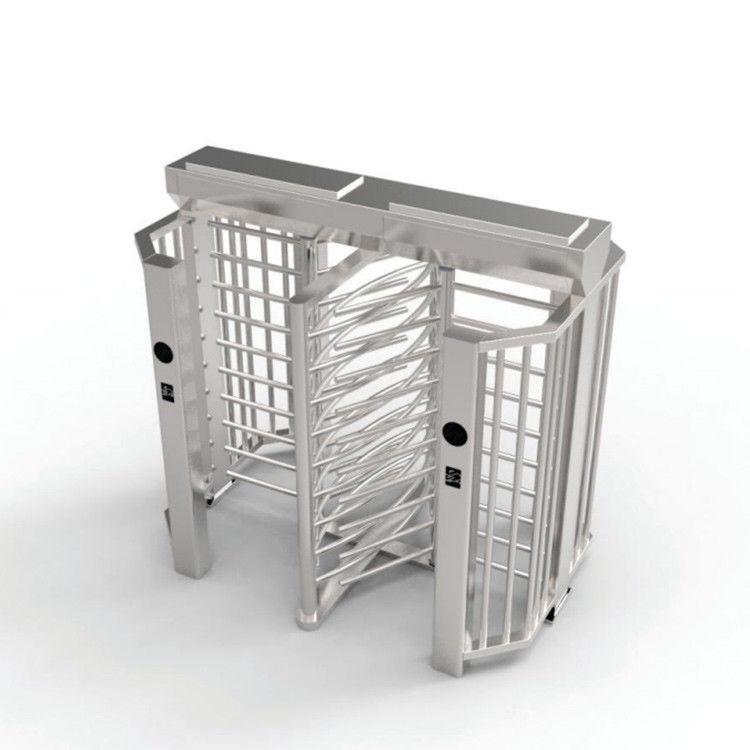

This semi auto stainless steel dual lane full-height turnstile offer maximum access security control. Users are not able to crawl underneath or climb over to gain unauthorized access into premise. Full height turnstile can effective control single pass through each time. It is built with high quality material for advanced reliability and vandal resistance, suitable for outdoor usage with high people traffic environment. The semi auto turnstile operation is based on solenoid lock that allows blocking rotation direction.

This is suitable for indoor and outdoor application. They are optimized economical solution for factory, colleges, commercial building, stadium, game park, prison and etc. It is not suitable installed near sea side.

Description

A robust and tough gate is important especially when you use it outdoor. The intruder might attempt to exploit a security loophole or vandalize the gate to gain unauthorized access when it is unattended by the guard. What if you can solve all these concerns and still without the expensive cost of a European brand?

2 in 1 to save space
You can save space with SN-FHT-M20 compared to installing 2 separate SN-FHT-M10 full height turnstile.

How to cheat a full height turnstile?
By stopping the arm just before it is locked back after the first authorized person exited, the intruder can reverse the rotation allowing himself to enter and pass through. The worse news is that this loophole can be repeatedly used after single valid access to allow UNLIMITED unauthorized entry since there is no guard at the site to stop it. SINOMATIC SLAR (single-level anti-reverse) lock design can prevent this loophole in our full height turnstile.

Work harder and longer for you
The additional heavy-duty shock absorber in our design effectively reduces impact and vibration due to rotational momentum during operation to cut down mechanical wear thus reducing your maintenance cost.

Stay secure while maintaining safety
You can manually unlock the turnstile during power failure to allow free arm rotation for a fast escape.

Lower cost transportation
The biggest dimension box is the tripod arm. Our arm is split into separate 3 pieces to lower transportation cost. You can easily assemble it back at the site.

Functions & Features

1. The design is optimized to accommodate limited space of site environment that require 2 lane traffic flow.

2. The LED light indicator make it convenient for users to know the passage direction. On standby mode, arrow is downward. Upon valid card, arrow will point to upward to indicate approved access. It can be configured to be bi-directional or uni-directional.

3. Easy integration with any third party access control or ticketing interface by external mounting or built-in.

4. The housing is made of high quality 304 stainless steel for long lasting and vandal resistance. Suitable for both indoor and outdoor environment.

5. Anti-reverse smart locking system to prevent unauthorized passed without access card by pushing through the arm. It only allows one person pass through at a time with passage rate of 30 persons/min each lane.

6. Gate can be configured to remain locked or unlocked during power failure. Confirmation is required before placing an order.

TECHNICAL SPECIFICATIONS
